Descrição
FVT1 - Sistema de Transporte com Acionamento Magnético de Baixo Impulso
FVT1 - Sistema de Transporte com Acionamento Magnético de Baixo Impulso

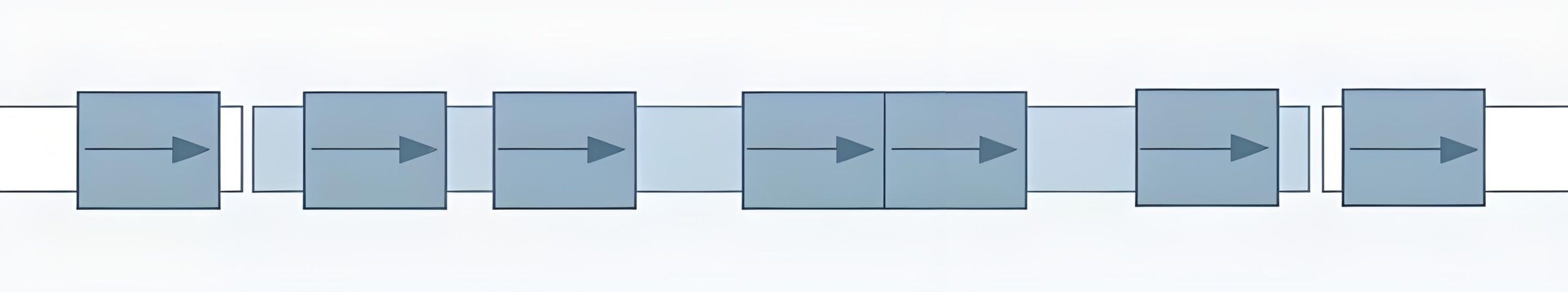

Linear conveying
(can be used in combination with other types of conveying systems)

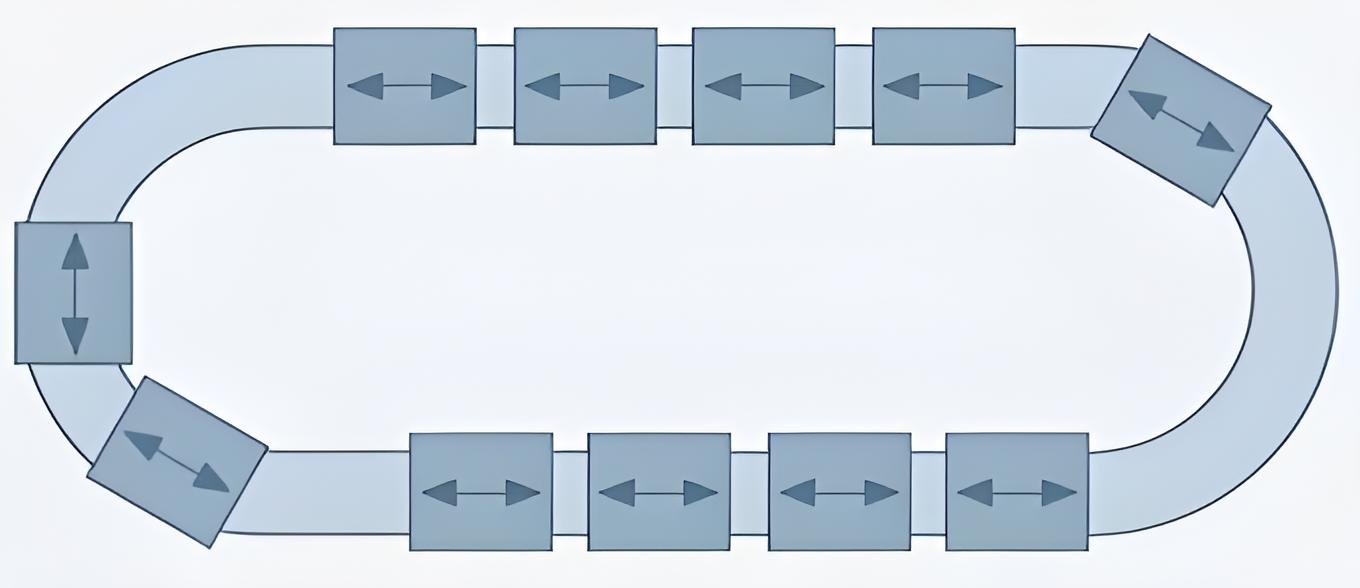

Circular track conveying

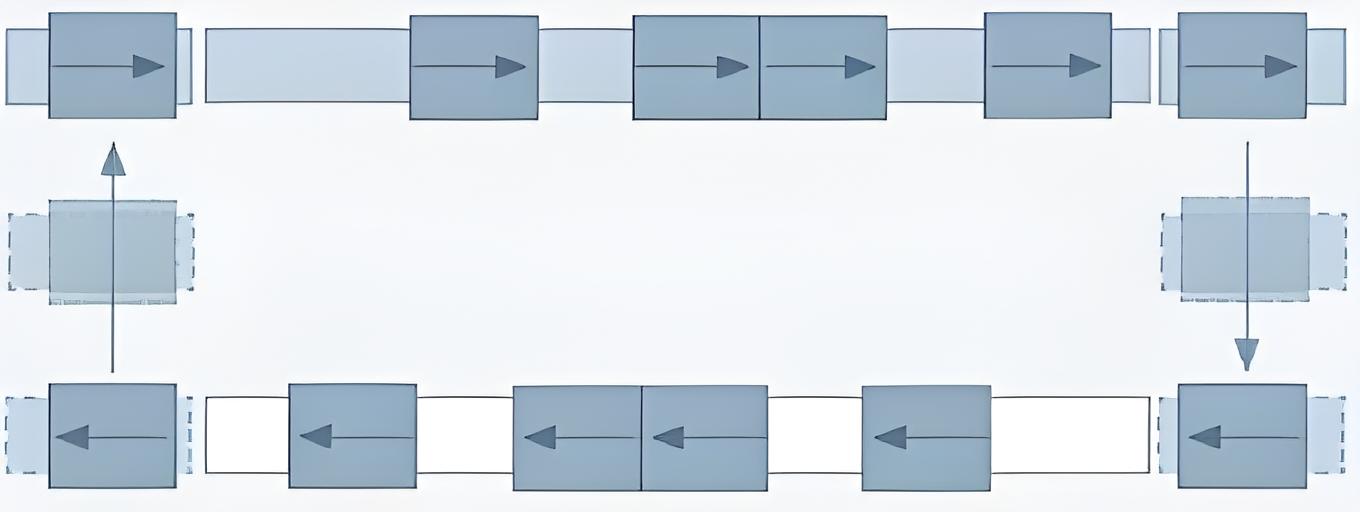

X-Y/Z conveying
(It can be used in combination with other types of conveying systems in the reflux section)
Repeatability accuracy；也可以表达为Repeat positioning accuracy 。
- Continuous thrust : 100N
- Maximum thrust : 300N
- Max. Load /kg : 20kg
- Velocidade nominal /(m/min):2.5m/s
- Maximum acceleration : 2G
- The minimum center distance of the movers : 80/165/205mm
- Repeatability accuracy : ±0.02mm
好处
- Closed-loop system. It can be designed in shapes such as circular, square, and racetrack. Branch tracks can be added to achieve complex processes like multi-process production, parallel processing, or NG product separation.
- The mover can pass through the arc section quickly without the need for deceleration and stopping, which is highly efficient.
- With a variety of mover sizes and products suitable for multiple load conditions, it can meet the requirements of more production environments.
- It adopts a V-shaped guide rail and roller design, which has relatively low load - bearing capacity. It is suitable for application scenarios with light loads and high - beat requirements.
