Mr. xuqingsong
What can I do for you?
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CIF,EXW,DDP,Express Delivery |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean,Express |
Model No.: WA2/WE2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Width Or Diameter: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Other
Pallet Length: 160mm-800mm
Pallet Width: 160mm-800mm
Pallet Height: 30mm
Pallet Weight: 0.9kg-22.2kg
Aluminum Carrying Plate Thinkness: 4.8mm-12mm
Surface Of Plate: Black Anodized
Flatness Of Plate: 0.3mm-1mm
Load Capacity: 1kg/cm
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

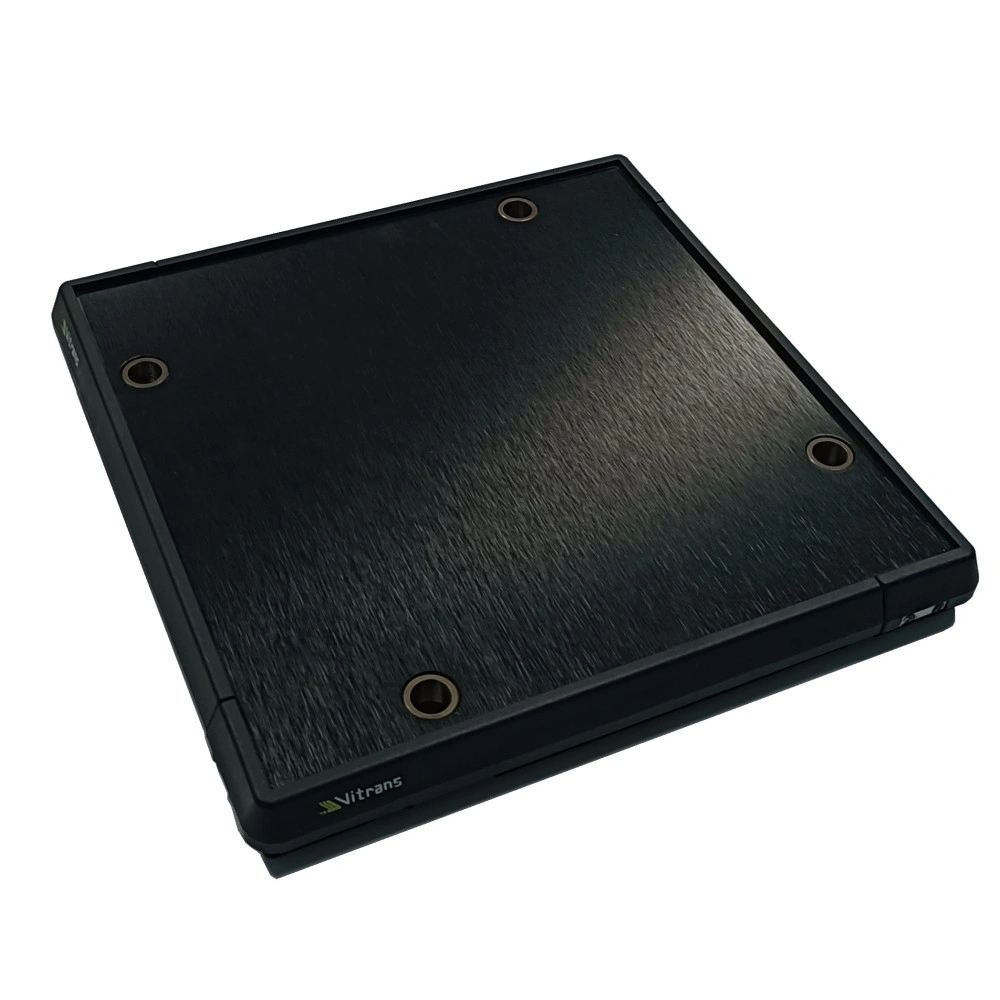

Vitrans pallet products are made of aluminum plate and PA material frame material, with high strength, good durability, not easy to deformation, easy to clean and other advantages.
The pallet is available in a variety of specifications and sizes to meet the needs of different customers. At the same time, we can also customize special specifications and sizes of pallet products according to customer requirements.
Pallet Dimensions:
The pallets is an indispensable bearing medium for the pallet conveyor. The pallet size can be extended from 160mm*160 mm to 1200mm*1200mm size (larger than this range can be customized beyond standard, welcome to inquire), and the product size is applicable to a wide range. The load plate on the pallet can be installed as a pallets fixture by customer-specific machined holes. The pallet is characterized by high wear resistance.
Workpiece Pallet Size
Carrying Plate Thickness Flatness Plate Material Plate Surface Treatment Plate Weight Part Number Bwt Lwt /mm /mm /KG / 160 160 5 0.3 Aluminum Black anodizing
0.32 1098663410 160 240 5 0.3 0.48 1098663412 160 320 5 0.3 0.65 1098663415 240 240 5 0.3 0.74 1098663416
240 320 5 0.5 0.99 1098663418
240 400 5 0.5 1.24 1098663421
320 320 5 0.5 1.33 1098663424
320 400 5 0.5 1.67 1098663427
400 400 5 0.6 2.10 1098663434
240 320 8 0.5 1.55 1098663420
240 400 8 0.5 1.95 1098663423
320 320 8 0.5 2.06 1098663426
320 400 8 0.5 2.63 1098663429
320 480 8 0.5 3.16 1098663432
400 400 8 0.6 3.31 1098663436
400 480 8 0.6 3.96 1098663440
400 640 8 0.8 5.33 1098663443
480 480 8 0.8 4.79 1098663447
480 640 8 0.8 6.42 1098663450
480 800 8 1 8.05 1098663452
640 640 8 0.8 8.61 1098663455
640 800 8 1 10.79 1098663457
800 800 8 1 13.53 1098663459
320 480 12 0.5 4.71 1098663433
400 400 12 0.5 4.92 1098663437
400 480 12 0.6 5.93 1098663441
400 640 12 0.8 7.95 1098663444
480 480 12 0.6 7.14 1098663448
480 640 12 0.8 9.58 1098663451
480 800 12 0.8 12.01 1098663453
640 640 12 1 12.85 1098663456
640 800 12 1 16.12 1098663458
800 800 12 1 20.22 1098663460
Pallet application example:
Pallet Handling Solutions for Varied Industries
The versatility of pallets shines in their application across industries. Whether it's pallet conveyors, battery conveyors, or household conveyors, pallets provide a standardized platform for efficient material transfer. Plastic chains and Roller chains, combined with Pallet Systems, contribute to streamlined handling solutions that meet the unique needs of each sector.
Engineering Excellence: Pallets and Conveyor Components
Precision-engineered conveyor belts, flat belts, and timing belts, working in tandem with pallets, ensure optimal performance. Pallets equipped with Conveyor motors and lifters contribute to the seamless rotation, positioning, and transportation of materials, adding a layer of efficiency to the overall system design.
Pallet Systems Redefining Manufacturing
Vitrans takes the lead in Pallet System innovation, crafting designs that elevate conveyor efficiency. Our Pallet Conveyor Systems, compared to competitors like Bosch, Dorner, and Flexlink, offer a unique blend of quality and affordability. Vitrans stands out as a manufacturer committed to delivering superior solutions at competitive prices.
Vitrans Advantage: Quality and Cost Efficiency
When choosing Vitrans, manufacturers gain access to pallet handling solutions that balance quality and affordability. The brand's commitment to excellence extends beyond design, with a focus on providing cost-effective conveyor systems that rival competitors in the market. Vitrans offers a unique combination of reliability and competitive pricing, setting it apart in the industry.
Elevate Efficiency with Vitrans Pallet Solutions
In conclusion, pallets are the unsung heroes of conveyor systems, ensuring the smooth flow of materials in automated environments. Vitrans, with its innovative pallet system designs, emerges as a leader, providing manufacturers with a competitive edge in both quality and cost. Choose Vitrans to revolutionize your conveyor systems and experience the efficiency that pallet solutions bring to the forefront of industrial automation.
