Model No.: SZ/2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, Philippines, Indonesia, India, Mexico, Malaysia, South Korea
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Conveyor System
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Other
Conveyor Leg Material: Aluminum Profile
Aluminum Profile Size: 45X60
| Selling Units | : | Set/Sets |
| Package Type | : | Carton box |
| Picture Example | : |
|

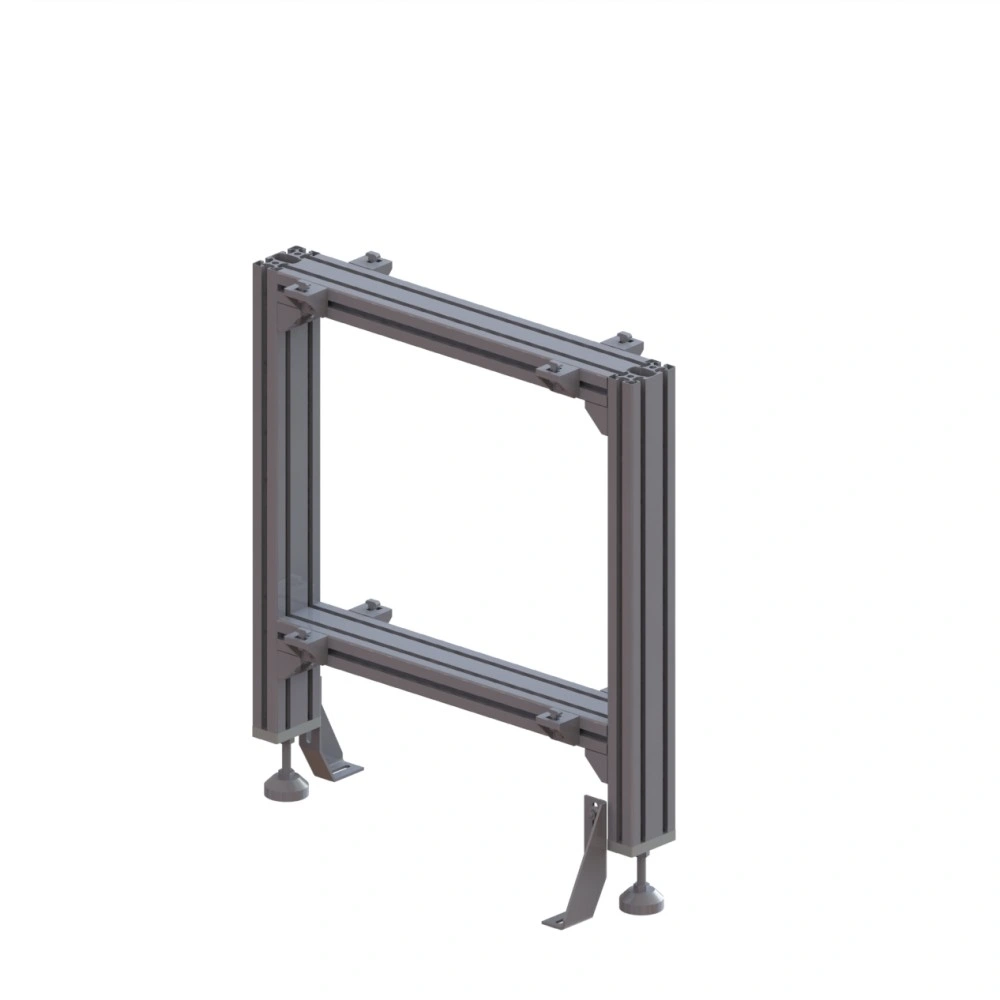

Double Layer conveyor Leg/Stand Design:
Double Layer Conveyor Leg/Stand Specification:
| Conveyor Leg/Stand Material | Aluminum Profile (EU standard) |
| Aluminum Profile Specification | 45X60 or 45X90 |
| Adapt to Conveyor Width /mm | 160 to 800 |
| Height /mm | Top Layer Height-Customized; Bottom Layer Height-Customized |
Double Layer Conveyor Leg/Stand Application:
What factors need to be considered in the process of designing a double conveyor leg/stand?
1)The total height of Pallet, fixture and product height should be smaller than the space between top layer and bottom layer conveyors.
2)Ensure the motor of the bottom conveyor does not come into contact with the ground.
3)Ensure the distance between two converyor legs does not exceed 2 meters.
4)For legs with a large width, the strength can be increased by connecting and fixing them with 45X45 aluminum profiles between the legs.
