| Payment Type: | T/T |
| Incoterm: | FOB,CIF,EXW,DDP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean,Air,Land |
| Port: | Shenzhen |
Model No.: FC2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Russia, United States, Indonesia, India, Malaysia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Belt Conveyor
Place Of Origin: China
Power (Watts): 750w
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Conveyor Width: 160mm to 800mm
Conveyor Length: 3000mm to 18000mm
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

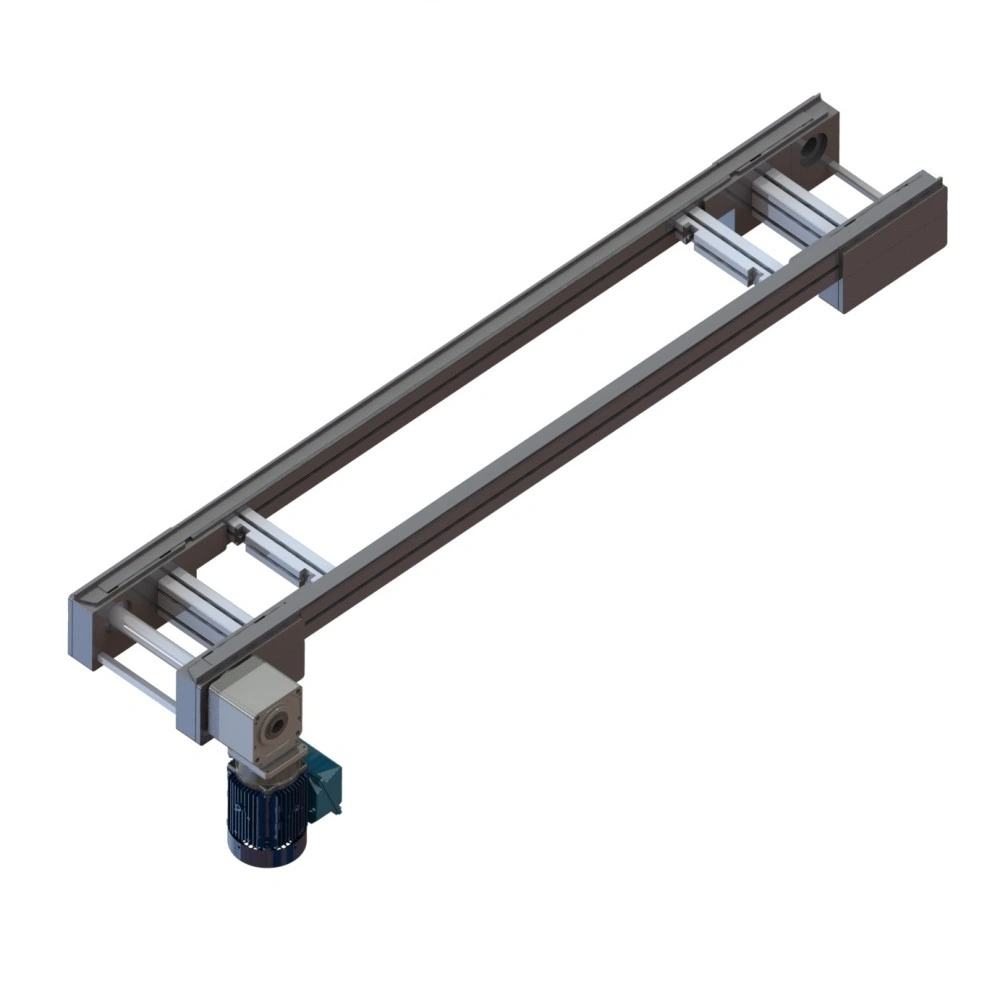

Flat Belt Conveyor Design:
Flat belt conveyor Specification:
| Transfer Medium | | Flat Belt |
| Pallet Width in transport direction /mm | Bwt | 160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤1200) |
| conveyor Length /mm | L | 3000≤L≤25000 |
| Nominal Speed /(m/min) | V | 6, 9, 12, 15, 18 |
| Max.Load /kg | | 250 |
| Drive Method | | 3 phase motor |
| Motor Mounting Method | MA | L, R, M |
| Motor Mounting Direction | | 0°, 90°, 180°, 270° |
| Voltage | U | 220/380/415 VAC |
| Frequency /Hz | f | 50 |
| Motor Connection | AT | Terminal Box |

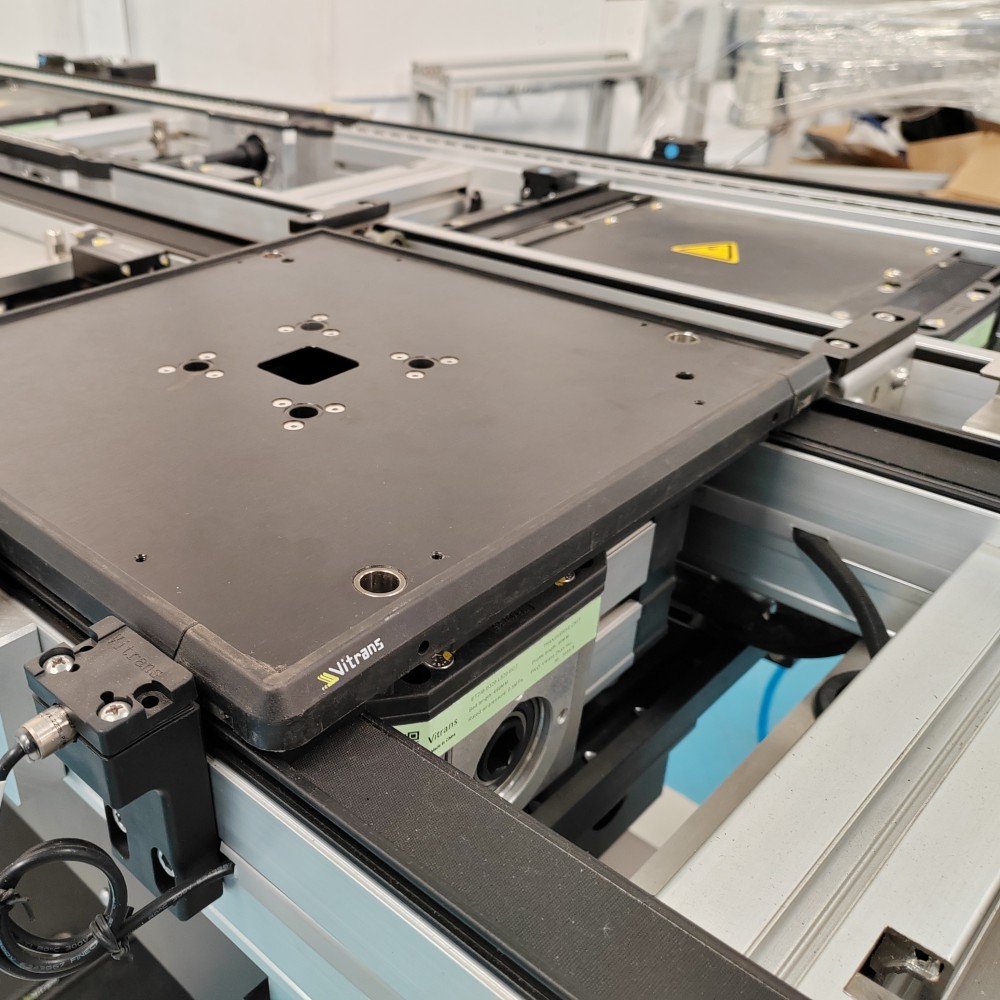

What is the feature of pallet type Flat Belt Conveyor?
Flat Belt conveyor is a kind of pallet conveyor. Its tranfer medium is flat belt. The maximum allowed payload of Flat Belt Conveyor is 1kg/cm, and maximum allowed total loading for each single conveyor is 250kg. Flat Belt Conveyor maximum total length can up to 18 meters and drived by one motor. This can effectively reduce the unit cost. Besides, Vitrans Flat Belt Conveyor is ESD standard.
Flat Belt Conveyor is widely used in production line automation across various industries, such as motor manufacturing and assembly, new energy battery production and assembly, household appliance assembly, 3C electronics assembly and automotive components production. When it Compared to chain conveyors, Flat Belt Conveyor does not generate oil stains and operates with lower noise levels.
