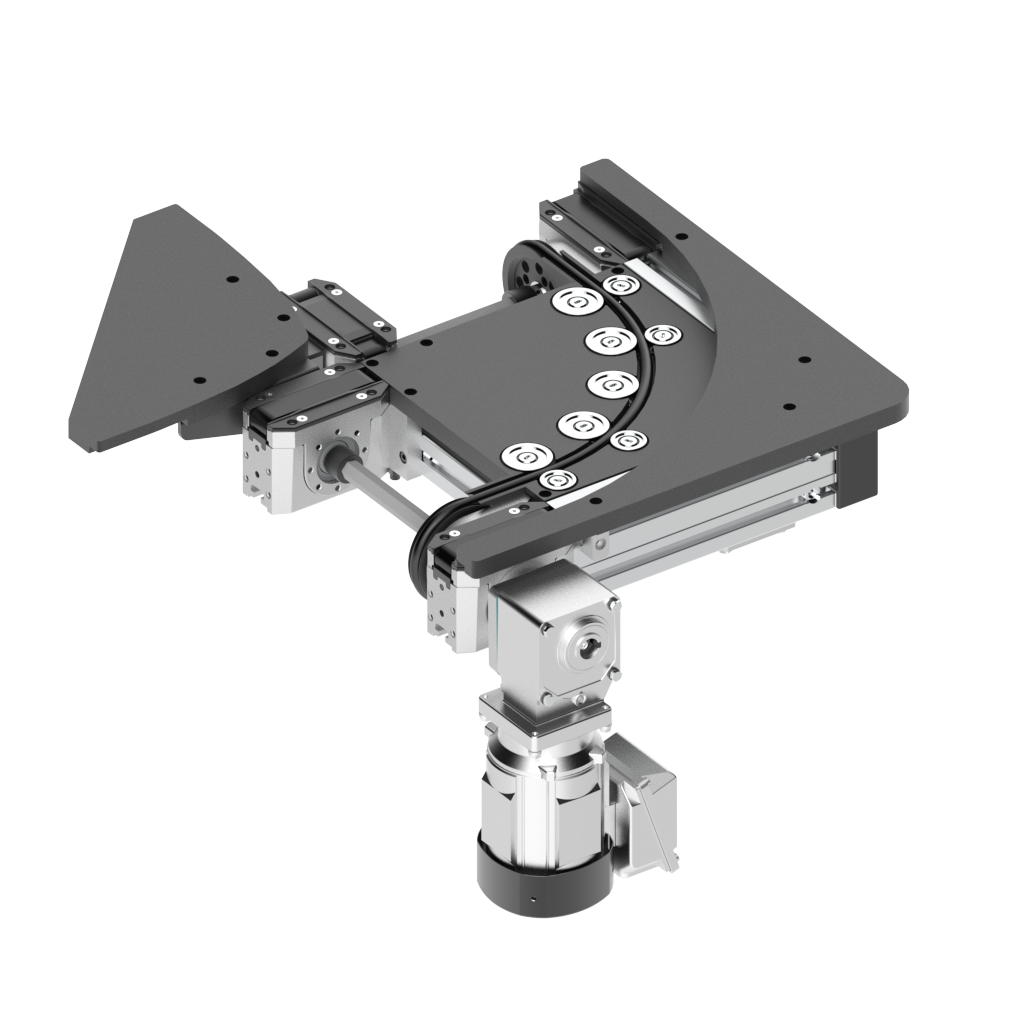

KV/90 Degree Belt Conveyor Curve
Parameter Specifications
| Workpiece pallet width(mm) | 160,240,320,400 |
|---|---|
| Workpiece pallet length(mm) | 160,240,320,400 |
| Combination options(mm) | 160 x 160、240 |
| Combination options(mm) | 240 x 160、240、320 |
| Combination options(mm) | 320 x 240、320、400 |
| Combination options(mm) | 400 x 320、400 |
| Permitted maximum load(kg) | 20 |
| Permitted maximum surface load(kg/cm) | 1 |
| Rated speed(m/min) | 0,6,9,12,15,18 |
| Motor type | Three phase motor |
| Motor mounting location | L(left), R(Right) |
| Conveying direction | C0(Clockwise) / CL(Anti-clockwise) |
| Working voltage | 220/380AC |
| Working frequency | 50Hz |
| Motor connection | Terminal box |
Details
KV2/90 Round belt conveyor curve Specification:
- Conveyor medium : Round belt
- Pallet width in transport direction /mm:t160, 240, 320, 400 (160u2264Bwtu2264400)
- Pallet length in transport direction /mm:t160, 240, 320, 400 (160u2264Bwtu2264400)
- Nominal speed /(m/min):t6, 9, 12, 15, 18
- Max. Load /kg:t20
- Drive method:t3 phase motor
- Motor mounting method:tL, R, M
- Motor mounting direction:t0u00b0, 90u00b0, 180u00b0, 270u00b0
- Voltage /V:t220/380 AC
- Frequency /Hz:t50
- Motor connection:tTerminal box
Key benefits:
- Accumulated is not allowed
- Compact design for Space optimization.
- Easy maintaininguff0clow dust
- Modular design for quick installing
- Low noise during operating
- suitable for small pallet and product with weight uff1c20kg
Advantages of Round Belt Conveyor Curve:
Adding to its accolades, the Round Belt Conveyor Curve boasts a small turning radius, saving valuable space. This advantage further enhances its utility, especially in environments where space optimization is a critical consideration.
