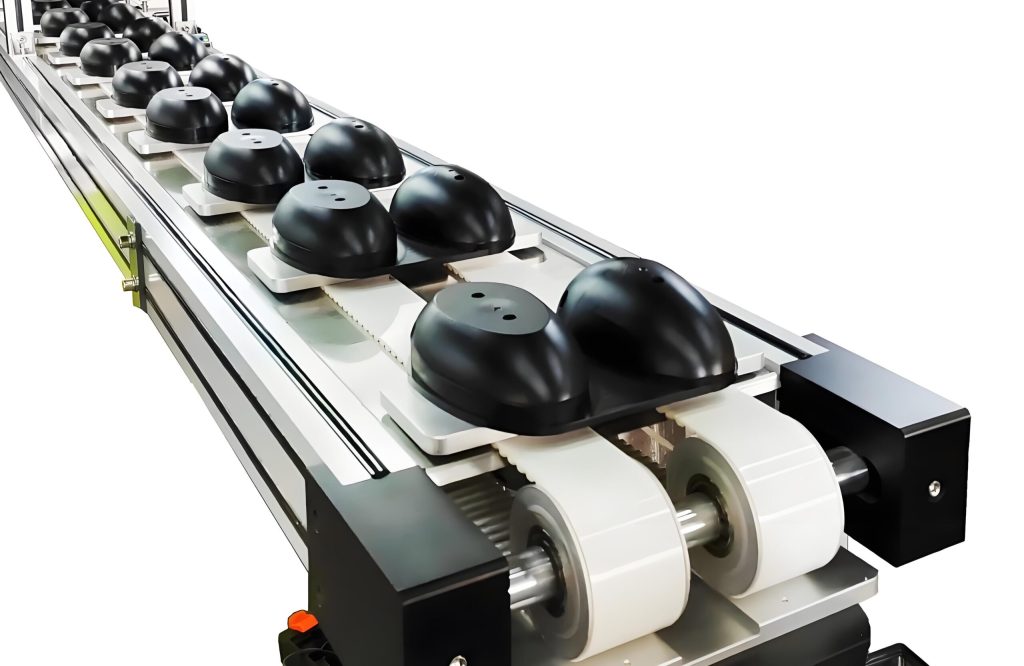

Timing Belt Attachment Conveyor
Details
Attachment conveyoru00a0Specification:
- Conveyor medium : Timing belt
- Pallet/Attachment/fixture:tCustomize according to product outline
- Conveyor length /mm :2000u2264Lu22646000
- Nominal speed /(m/min):t6, 9, 12, 15, 18
- Max. Load /kg:t150
- Drive method:Servo motor with reducer
- Stop method:Motor control
- Stop precisionu00b12mm
Key benefits:
- self circling:pallet can circle without lifter or other modules
- No need stoppers:pallet stop by controlling servo motor
- Accurate locate:Pallet stop precisionu00b12mm.When using additional positioning unit,locate precision can be u00b10.5mm;
- Low particle and noisy:No relative motion between pallet and transfer medium
