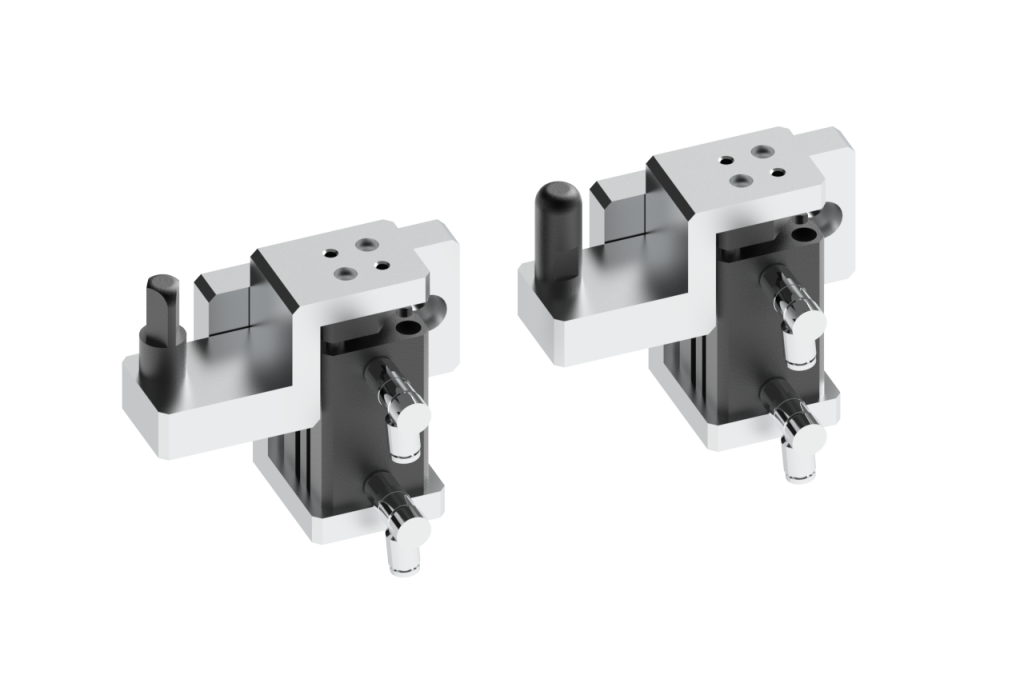

PX Non-Lift Positioning Unit
Using the pins of locate unit and positioning bushings of workpiece pallet to precisely locate workpiece pallet.
Parameter Specifications
| Product description | Pin locate unit |
|---|---|
| Working principle | Uses locate unit pins with workpiece pallet positioning bushings to precisely locate the pallet; cannot lift the pallet |
| Usage | Used in pairs; can be installed on the conveyor of lifter |
| Suitable for | WA2 and WE2 workpiece pallet |
| Locate accuracy(mm) | ±0.1 |
| Adapted conveyor type | BC2 / AC2 / PC2 (also usable on FC2 when adapted type is BC2) |
| Cylinder brand | S |
Details
PX Pin locate Unit Specification:
