Vitrans Heavy Duty Roller Conveyor

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW,DDP
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	Shenzhen

load capacity:

Customized

Model:

RC/C

Types:

Roller Conveyor
Heavy Duty Conveyor
Conveyor System
Material Handling Conveyor
Industrial Conveyor

Contact Now

Product Description

Product Attributes

Model No.: RC/C

Brand: Vitrans

Applicable Industry: Manufacturing Plant, Other

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): United States, Viet Nam, India, Mexico, Malaysia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Status: New

Material: Stainless Steel

Structure: Conveyor System

Place Of Origin: China

Power (Watts): 200w, Other

Warranty Period: 1 Year

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Marketing Type: Other

Core Component Warranty Period: 1 Year

Conveyor Width: 120mm to 1000mm

Conveyor Length: 600mm to 6000mm

Conveyor Loading: Customized

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	Wooden cases
Picture Example	:

Product Description

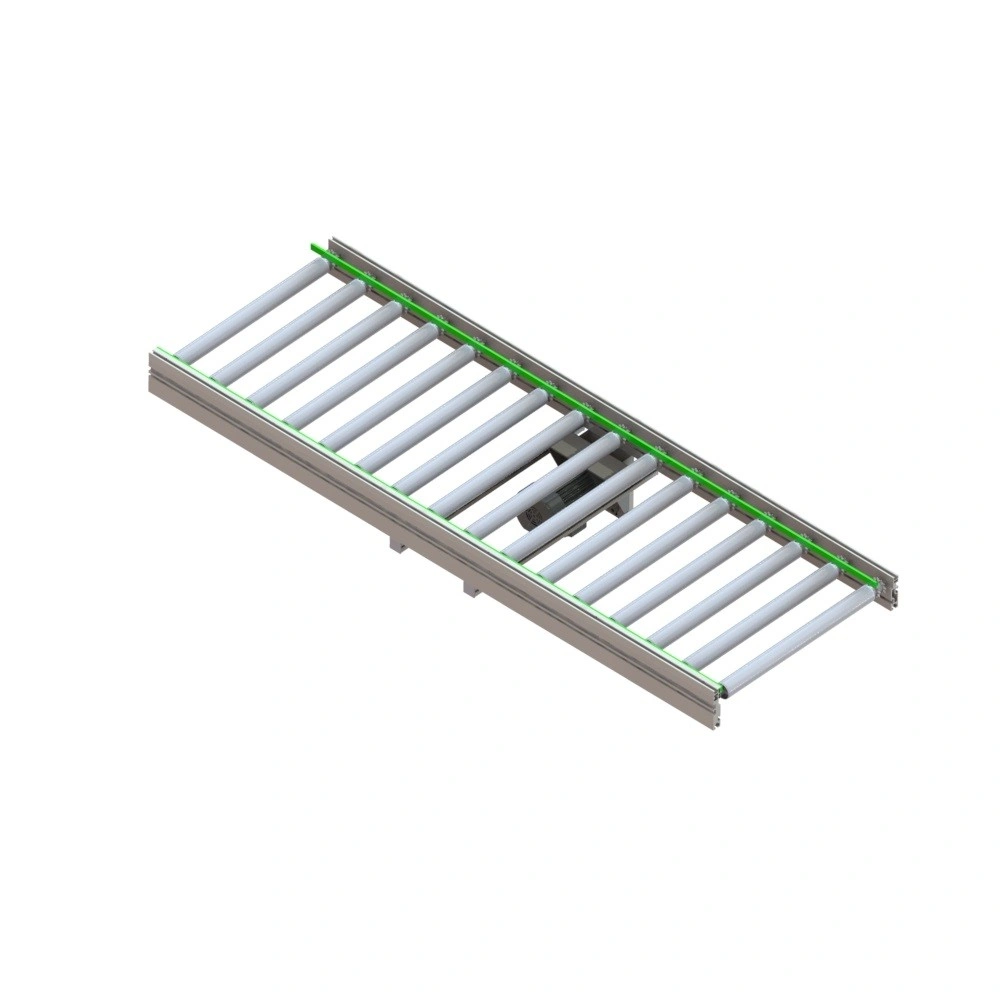

Roller Conveyor(Chain driving) Design:

Roller Conveyor Specification

Roller conveyor(Chain driving) Specification:

Conveyor Effective Width /mm	Bwt	120 to 1000
Conveyor Length /mm	L	600 to 6000
Roller Dirve Method		By Chain
Conveyor Drive Method		3 Phase Motor
Motor Power /W		Customized, basis on total loading
Transfer Speed / (m/min)	V	6 to 20
Roller Diameter /mm	D	50 or 60
Max. Load for each Roller /kg		30
Roller Material		Stainless Steel
Roller Pitch /mm	P	Customized, basis on product payload and dimensions.

Roller Conveyor System

What are the types of roller conveyors？

Roller conveyors can be divided into two types according to operational requirements: Accumulated and non-accumulated. Accumulated roller conveyors generally come with a clutch mechanism on each roller. When the product is stopped, the clutch mechanism will slip, thereby avoiding relative frictional motion between the product and the roller.

If according to the transmission method, the roller conveyor can be divided into two types: one is to transmit the power of the motor to each roller through the chain and sprocket, and the other is to transmit the power to each roller through the bevel gear.

If according to the structure, roller conveyors can be divided into full roll and roller type. Full roll roller conveyors can evenly distribute the weight of the product on the rollers, while roller type rollers can save space and facilitate the installation of lift locate and lift transfer mechanisms.
