Model No.: AC2
Brand: Vitrans
Applicable Industry: Manufacturing Plant, Other
Out-of-warranty Service: Online Support, Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Malaysia, India, Indonesia
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Status: New
Material: Aluminium
Structure: Chain Conveyor
Place Of Origin: China
Power (Watts): Other
Warranty Period: 1 Year
Width Or Diameter: Other
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Marketing Type: Other
Core Component Warranty Period: 1 Year
Core Components: Bearing, Motor, Gearbox
Load Capacity: 1.5kg/cm~3kg/cm
Max.Conveyor Speed: 20m/min
Conveyor Length: 300mm-30000mm
Conveyor Width: 160mm-1200mm
Conveyor Height: Customized
Certification: CE Certificate
Transfer Medium: Accumulated Chain
Stucture: Pallet Conveyor
Motor: 180W/370W/750W
| Selling Units | : | Set/Sets |
| Package Type | : | Wooden cases |
| Picture Example | : |
|

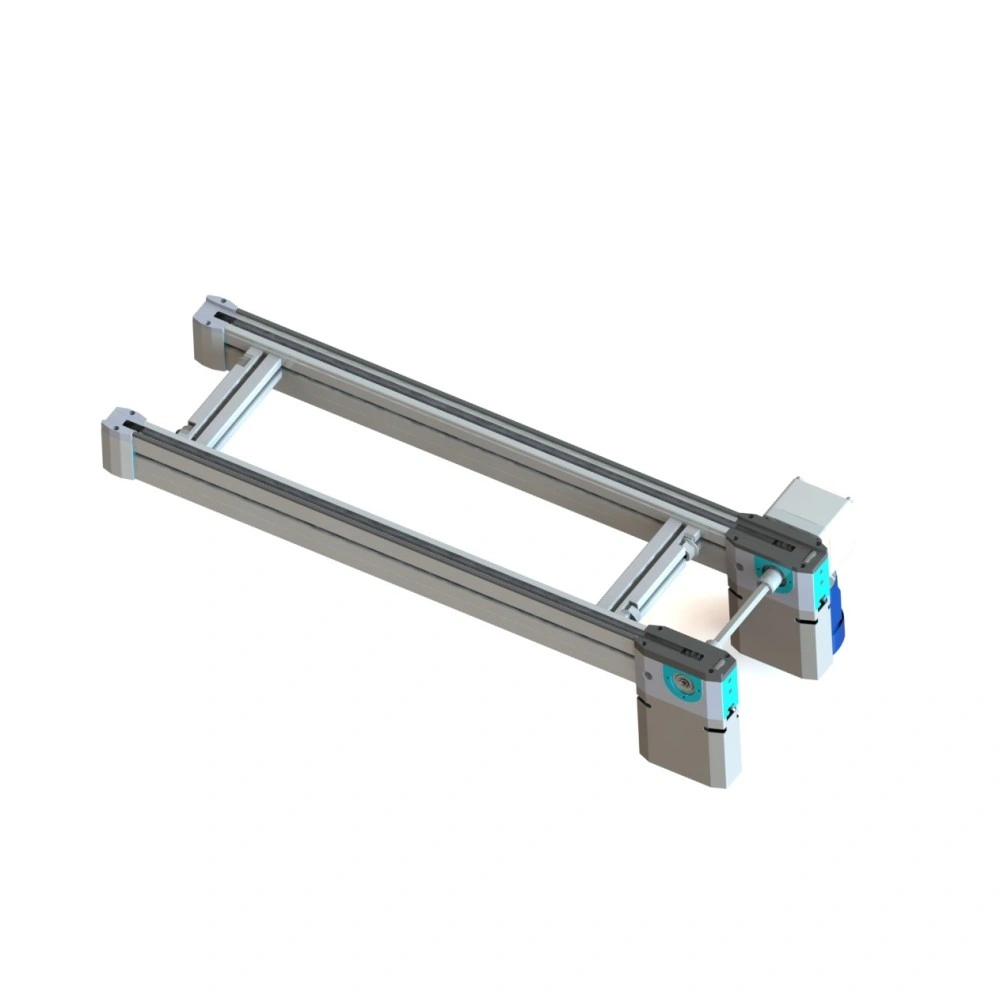

Accumulat Roller Chain Conveyor Design:
Accumulat Roller Chain Conveyor Dimensions:
Accumulat Roller Chain conveyor Appearance:
What are the differences between Chain Conveyor and belt conveyor?
| Specification | Accumulated Chain Conveyor | Belt Conveyor |
| Loading Capacity | 1.5kg/cm to 3kg/cm | 1kg/cm |
| Total Loading for Each Conveyor | 300kg to 2200kg | 60kg or 250kg |
| Reverse Operation | (Conveyor length ≤2000mm) | Timing belt conveyor is reversible (Conveyor Length≤6000mm) |
| Request Pallet Type | PE Pallet | PA pallet |
The Accumulated Roller Chain Conveyor, a fundamental element in Pallet Conveyor Systems, plays a pivotal role in industrial automation. Tailored for efficient pallet transportation, this Conveyor System integrates a drive unit, return unit, and Conveyor Section. Distinguished by its versatility, it offers a range of chain options, including single-speed (1.5kg/cm), 2.5 times speed (3kg/cm), and 3 times speed (3-4kg/cm), accommodating diverse payload and speed requirements.
Vitrans' Accumulated Roller Chain Conveyor stands out with its chain variety, featuring plastic and steel rollers. This adaptability makes it suitable for environments with medium loads, ensuring optimal performance across different industrial settings.
In terms of design, Vitrans' chain conveyor incorporates a built-in chain tensioning device within the drive unit, guaranteeing consistent chain tension during extended operations. This feature enhances system stability and reliability, contributing to seamless and uninterrupted production processes. With an impressive total load capacity of up to 2200kg per conveyor, it is an ideal choice for applications requiring substantial product handling and high accumulation.
The Accumulated Roller Chain Conveyor finds extensive applications in various industrial scenarios, including logistics, manufacturing, and assembly lines. As a key component in automated production, it excels in assembly line conveyance, automated transfers, and Pallet Handling solutions. Its adaptability, robust design, and high load capacity make it an indispensable asset for enhancing overall production efficiency.
