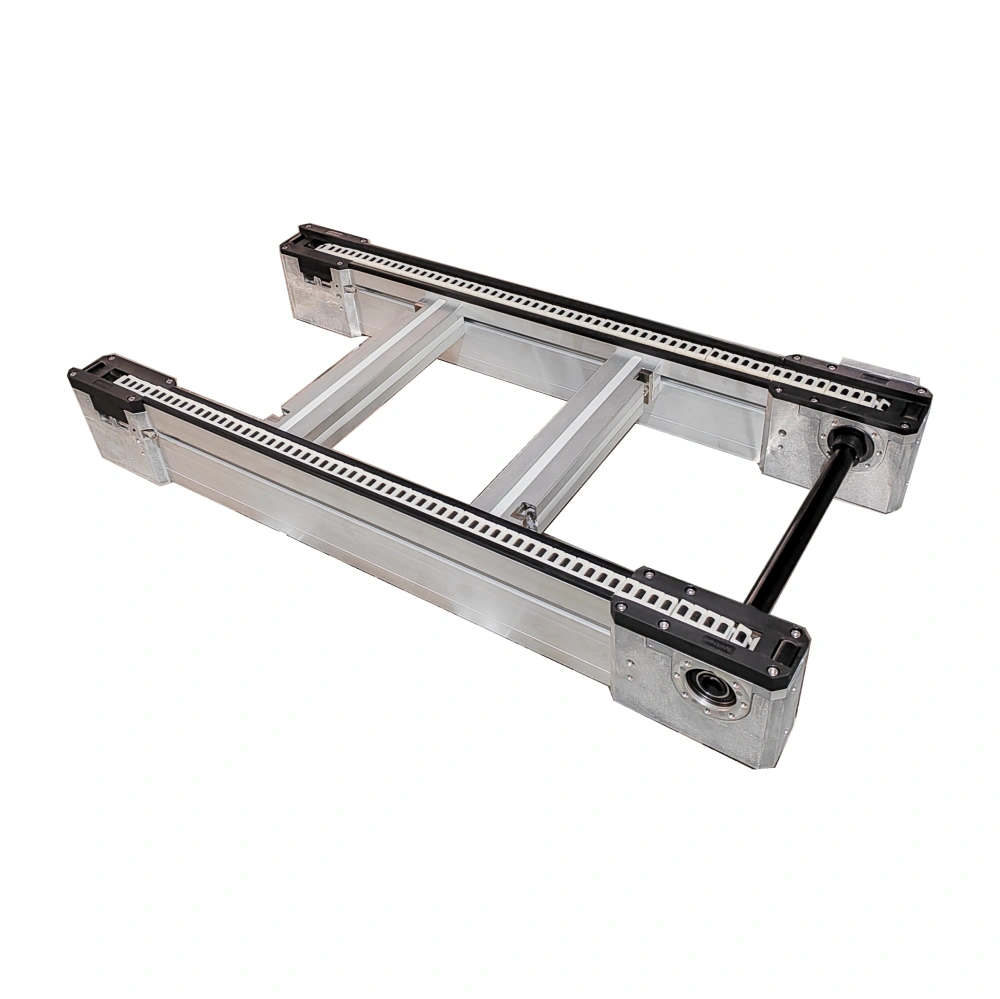

Plastic Chain Conveyor for Pallet Conveyor System

Plastic Chain Conveyor for Pallet Conveyor System

Get Latest Price

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW,DDP
Transportation:	Ocean
Port:	Shenzhen

load capacity:

150KG

Model:

Types:

Plastic Chain Conveyor
Chain Conveyor
Pallet Conveyor System
Pallet Conveyor
Conveyor System
Pallet System
Conveyor
Conveyors
Modular Conveyor
Pallet Conveyor System
Pallet Transfer System

Contact Now

Product Description

Product Attributes

Model No.: PC2

Brand: Vitrans

Applicable Industry: Manufacturing Plant

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): India, Malaysia

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Status: New

Material: Aluminium

Structure: Conveyor System

Place Of Origin: China

Power (Watts): 200w, Other

Warranty Period: 1 Year

Width Or Diameter: Other

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor, Other, Bearing

Load Capacity: 0.5kg/cm

Max.Conveyor Speed: 20m/min

Conveyor Length: 300mm-6000mm

Conveyor Width: 160mm-1200mm

Conveyor Height: Customized

Certification: CE Certificate

Stucture: Pallet conveyor

Transfer Medium: Plastic Top Chain

Motor: 180W/370W

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	wooden case
Picture Example	:

Product Description

PC2 Plastic Chain Conveyor Design:

PC2 Plastic Chain Conveyor Design

PC2 Plastic Chain Conveyor Specification:

Pallet width in transport direction /mm	Bwt	160, 240, 320, 400, 480, 640, 800 (160≤Bwt≤800)
Pallet length in transport direction /mm	Lwt	160, 240, 320, 400, 480, 640, 800 (160≤Lwt≤800)
conveyor length range /mm	L	500≤L≤8000
Nominal speed /(m/min)	V	6, 9, 12, 15, 18
Max.Load /kg		200
Drive method		3 phase motor
Motor mounting method	MA	L, R, M
Motor mounting direction		0°, 90°, 180°, 270°
Voltage	U	220/380 AC
Frequency /Hz	f	50
Motor connection	AT	Terminal box

PC2 Plastic Chain Conveyor Overview:

Low-Dust Pallet Conveyor System Enhanced with Plastic Chain Conveyor

Introducing our innovative Low-Dust Pallet Conveyor System, featuring a specialized Plastic Chain Conveyor designed to minimize dust particles and enhance the cleanliness of your material handling processes. This advanced solution offers a range of benefits tailored to optimize efficiency and maintain a dust-free environment in your facility.

Plastic Chain Conveyor in Pallet Transfer System

Key Features:

Dust Reduction Technology: The Plastic Chain Conveyor is equipped with features specifically engineered to minimize dust generation during pallet transportation. This is crucial for industries requiring a clean and controlled environment.

Precision Control: Benefit from precise control over pallet movement, as the Plastic Chain Conveyor ensures accurate positioning and smooth transitions throughout the conveyor system.

Low Maintenance: The plastic chain material reduces wear and tear, resulting in lower maintenance requirements compared to traditional conveyors. This contributes to prolonged system longevity and operational efficiency.

Modular Design: Our pallet conveyor System, featuring the Plastic Chain Conveyor, incorporates a modular design that allows for easy configuration and adaptation to diverse material handling needs.

Quiet Operation: Experience a quieter working environment with the reduced noise levels associated with the Plastic Chain Conveyor. This is particularly advantageous in settings where noise reduction is a priority.

Seamless Integration: The system seamlessly integrates into various production setups, offering compatibility with other automation equipment and ensuring a smooth workflow.

Plastic Chain Conveyor in Pallet Handling System

Applications:

A. Cleanroom Environments
B. Pharmaceutical Manufacturing
C. Electronics Assembly
D. Food Processing

Plastic Chain Conveyor in Pallet Transfer System

Benefits:

A. Dust-Free Material Handling
B. Precise Positioning
C. Reduced Maintenance
D. Modular and Adaptable
E. Quiet Operation

Plastic Chain Conveyor For Pallet Handling System

Upgrade your material handling processes with our Low-Dust Pallet Conveyor System, featuring the advanced Plastic Chain Conveyor. Experience a cleaner and more efficient production environment tailored to the specific requirements of your industry.

Plastic Chain Conveyor
